CP-PS-UK-8

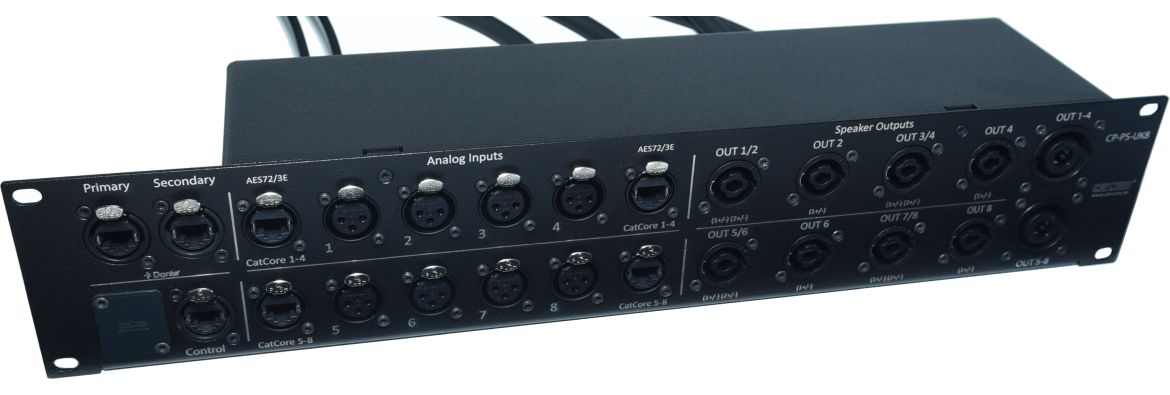

Connectorpanel 2RU for Powersoft Unica Series 4-channel

e.g. models 1K8, 2K8, 4K8, 8K8, 10K8(Unica T)

tailor made connectorpanel for Unica L und T-Series including CatCore, XLR, Speakon 4 and 8pin, Netzwork connections.

System specific rackpanel for quad-channel amps Powersoft Unica M and T-Series. Direct adaption from Phoernix/Euroblock to Speakon and XLR conectors. Additionally analog signals can be fed/linked via CatCore to other devices.

The panel features speakon 4- and 8-pin, allowing biamp and multicannel speaker wiring.

Cable connections to the amp come plug&play with Phoenix/euroblock assmembled.
Using the standard analog Euroblock input modules partly obstructs the GPIO-ports. Please get in contact wth us to offer an alternative solution, if the GPIO-ports need to remain acessible.

At the Unica T-Series the CatCore-Ports (AES 72/3E) connect the isolated GNDs of the analog inputs in groups of four.

Connections:

2x analog in + 2x analog out via CatCore (AES72/3E)
8x analog in / XLR parallel with CatCore
8x Speakon NL4 out (single/biamp)
2x Speakon NL8 out (multichannel)
3x Ethercon/RJ45 thru (2x Dante, 1x Control)
1x D-Series blank panel

L- and T-Versions are identiacally except the Euroblock/Phoenix connections.

L-Version is compatible with models 5K4, 9K4, 12K4, 16K4
T-Version is compatible with models 10K8

You have technical questions? You want to buy CatCore dirctly from us or need help finding a distributor? Drop us a line at info@cat-core.de !

Note: The patchbay offered here is a third-party accessory. All brand and product names such as "Powersoft" are the property of their respective owners and are used solely to describe compatibility.

Manufacturer:
Think Solutions GmbH
Herrnstrasse 3
D-90489 Nuernberg
