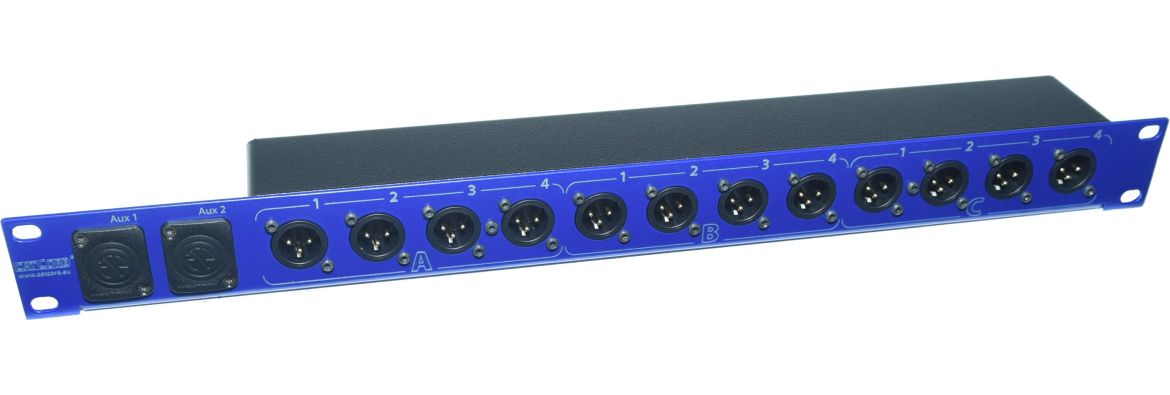

RST - Rackbox 19" triple, XLR front, CAT rear
Rack unit ,each with universes with two Ethercon and four XLR-connectors on front and optionally back.
All sockets are designed with CatCore in parallel, with optional vice versa outputs on back.
In/outputs can either be used with conventional XLR, or via CatCore. Perfect use for multichannel amps, wireless microphone racks or DMX Nodes.
Powdercoated aluminium housing 19” / 1 RU.
Space saving design allows mounting even behind devices
Laser engraving for permanent marking
Pinout according to Standard AES72 / 3E.
Schematic:
The following versions are available:
|
RST-3F |
3x frontseitig 4x XLR 3-pol weiblich, CAT rückseitig |
|
RST-3M |
3x frontseitig 4x XLR 3-pol männlich, CAT rückseitig |
|
RST-5F |
3x frontseitig 4x XLR 5-pol weiblich, CAT rückseitig |
|
RST-5M |
3x frontseitig 4x XLR 5-pol männlich, CAT rückseitig |
