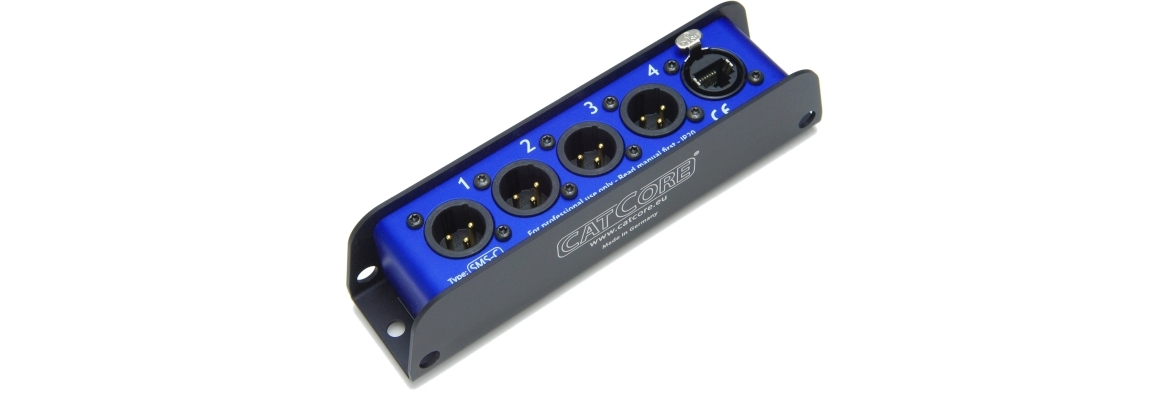

Stagebox CAT / XLR Compact
Ultra-compact XLR over CAT Box
Blue powdercoated aluminium housing with versatile mounting options für cableties, steel wire, velcro and screws.
Minimalistic Audio/DMX-extender over cat. Compact enclosure for universal light and sound applications.
Not only perfect for stage and truss, but also of handy device for every toolcase!
Ethercon / RJ45 to four times XLR, versions in 3- and 5pin available, suitable for Cat5e, Cat6 or Cat7.
Pinout according to Standard AES72 / 3E.

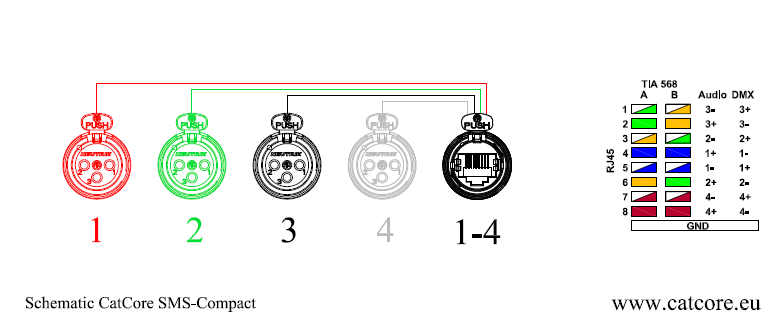

Schematic:
![Schematic CatCore SMS-C Audio over Cat5 Cat6 Cat7 DMX Splitbox Schematic CatCore SMS-C Audio over Cat5 Cat6 Cat7 DMX Splitbox](/images/schematics/Pinout_sms-c_CatCore_XLR_RJ45_Cat.jpg)
The following versions are available:
SMS-C-3M |
Ethercon to 4x XLR 3-pin male |
SMS-C-3F |
Ethercon to 4x XLR 3-pin female |
SMS-C-5M |
Ethercon to 4x XLR 5-pin male |
SMS-C-5F |
Ethercon to 4x XLR 5-pin female |

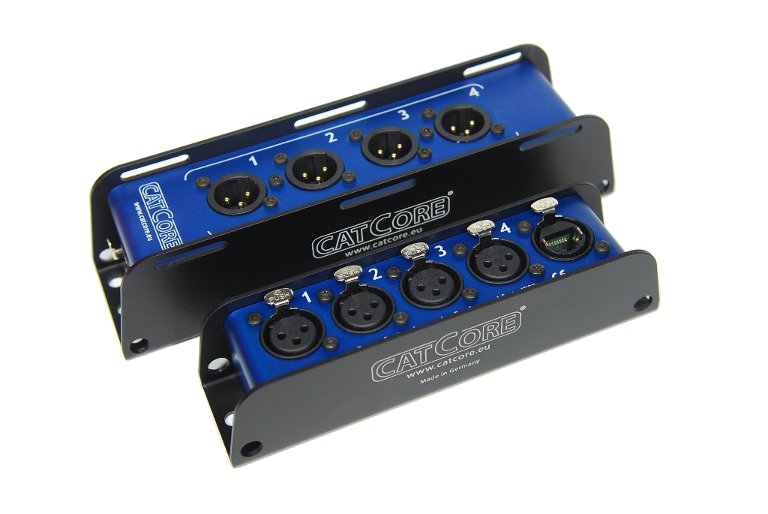

Size comparison SMS and SMS-Compact:
The SMS Compact Stageboxes have about 50% of the volume of our conventional stageboxes. One Ethercon socket and the M10 thread on the bottom were omitted, but the stageboxes still feature fixing holes for screws and safety wires.
