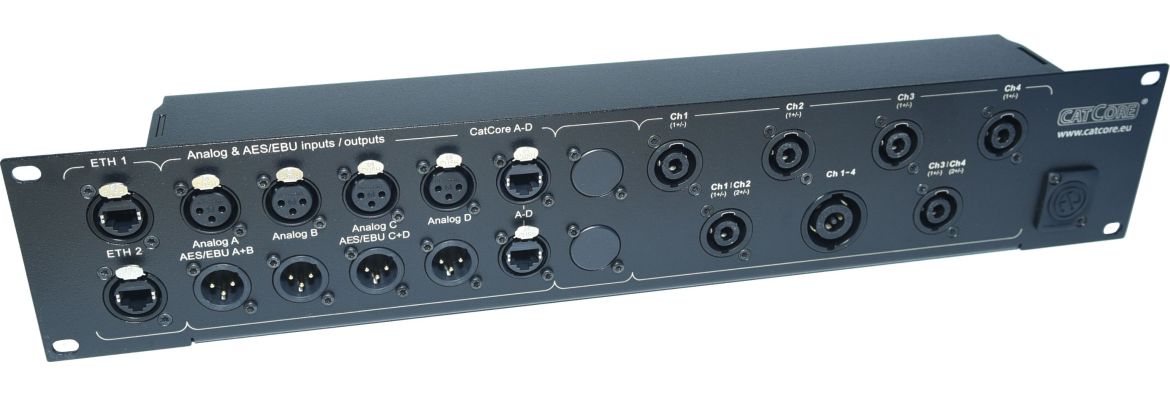

X4LS-LAC Speaker panel 4-channel Speakon NL8
2RU-Panel for 4-channel amprack with 6x NL4, 1x NL8 , 2x Ethernet thru, 4x Analog/AES3 + CatCore
Perfect for four channel amps like L-Acoustics LA4X and LA12X
All purpose patchbay for 4-channel audio amplifiers and ampracks. Outputs as Speakon 4- pin in separate and mixed pinout, NL8 for multichannel output. Audio inputs analog and AES/EBU combined via XLR and CatCore, 2x Ethercon thru. Speaker inputs via NL4 (2-Channels each). D-Series blank cutout for individual modification.
Low profile design, all connections on backside as sockets. Therefore usable witch any Amp, and at any position within your rack. All internal wiring on thick-layer PCBs with 4mm² cross section for miniumum losses. All type of amp outputs as Speakon, Jack, XLR, Binding Post, AP/EP etc. can be connected via Adapter to NL4
Powdercoated aluminium housing 19" / 2RU.
Low depth allows even positioning behind devices within rack.
Laser engraving for permanent marking.
Pinout CatCore-ports according to standard AES72/3E.
QUestions about the product? How to buy CatCore dirct from us? Send us a mail at info@cat-core.de !
The following versions are available:
X4-LS-LAC |
AES in Analogblock integriert (LA4X / LA12X), LK8 |
