D-Kit-Intern - Cable split behind panel for 1x D-Series cutout

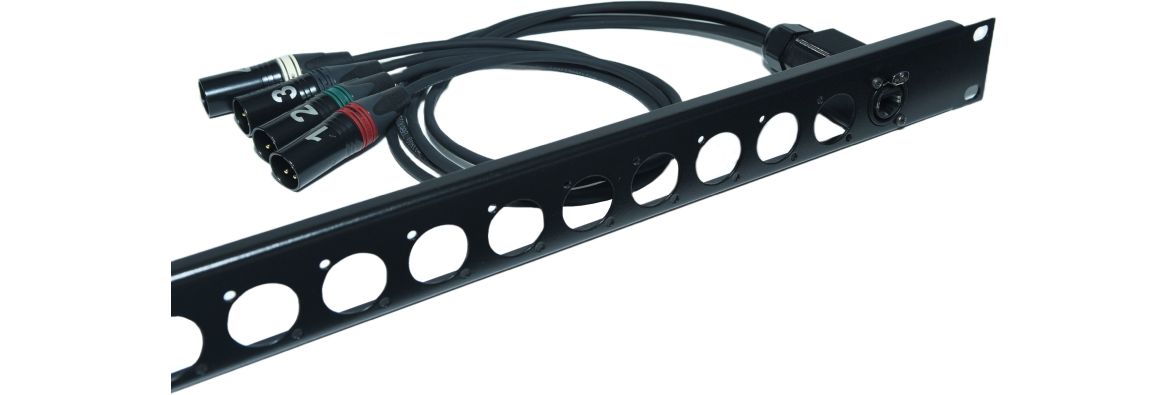

D-KIT-L XLR over Cat DIY Kit CatCore for internal cabling, D-Series.

Cable split for D-series cutout (24mm diameter).

Minimized space reqirement füor maximum packing density. Closed housing behind panel.

AES/EBU-cables for digital or analog audio, DMX or any other symmetrical signals.

Easy to assemble DIY-kit for creating subcore-systems, patchbays and looms for mixers. Extremely high density, up to 16x4 channels within one 19" rack unit.

Labelling for each set 1-4, colored marking for groups optionally possible. Colorcodes come in our easy to remember "RGBW"-scheme*, unless ordered differently.

Red, Green, Black, White.

Pinout according to Standard AES72 / 3E, cable length 75cm.
