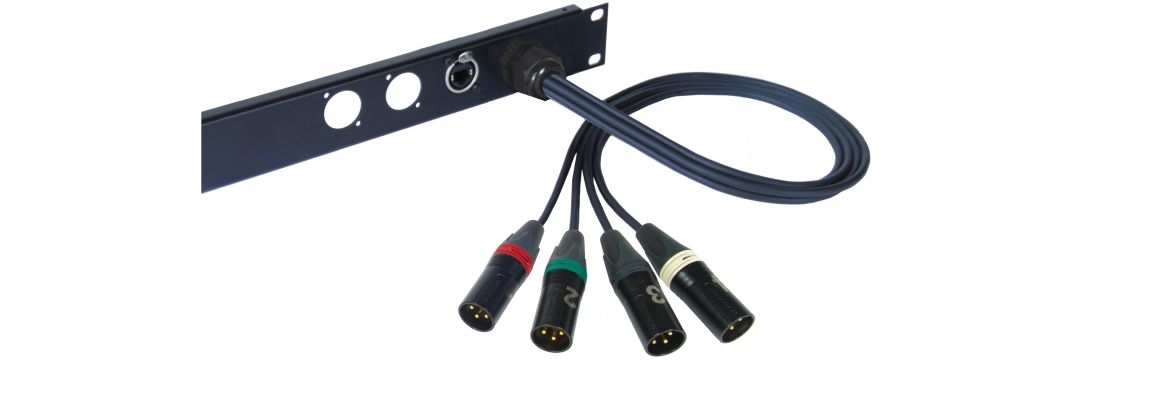

D-Kit-S - Cable split for customized panels, 2x D-Series, short gland
XLR over Cat DIY Kit CatCore/Ethercon-socket with four XLR tails for D-series.
Cable split for D-series cutout (24mm diameter).
Mounting without tools within seconds due to unique connection technology, perfect for extending existing equipment like stageboxes and patchbays.
AES/EBU-cables for digital or analog audio, DMX or any other symmetrical signals.
Easy to assemble DIY-kit for creating subcore-systems, patchbays and looms for mixers. Extremely high density, up to 6x4 channels within one 19" rack unit.
Labelling for each set 1-4, colored marking for groups optionally possible. Colorcodes come in our easy to remember "RGBW"-scheme*, unless ordered differently.
Red, Green, Black, White.
Pinout according to Standard AES72 / 3E.
You have technical questions? You want to buy CatCore dirctly from us or need help finding a distributor?
Drop us a line at info@cat-core.de !
Schematic:
The following versions are available:
|
D-Kit-S-3M |
Ethercon to XLR 3-pin male |
|
D-Kit-S-3F |
Ethercon to XLR 3-pin female |
|
D-Kit-S-5M |
Ethercon to XLR 5-pin male |
|
D-Kit-S-5F |
Ethercon to XLR 5-pin female |
Manufacturer:
Think Solutions GmbH
Herrnstrasse 3
D-90489 Nuernberg
info@cat-core.de
"CatCore" is a registered trademark at the DPMA Deutsches Patent- und Markenamt
