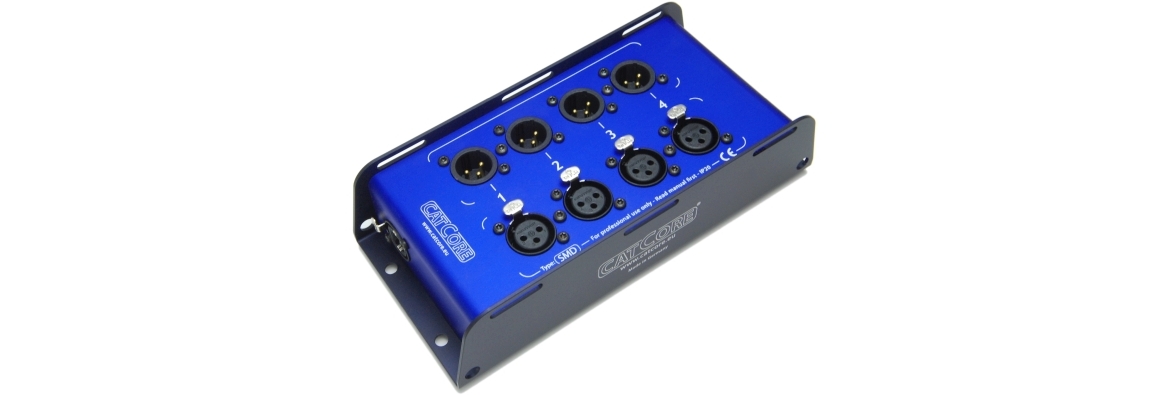

XLR over CAT Box, blue, twin-row with XLR and RJ45/Ethercon

Stagebox double

Rugged twin stagebox including eight XLR-sockets and two Ethercon/RJ45 sockets for input and linked output

XLRs wired parallel per channel

Powdercoated aluminium housing with versatile mounting options für cableties, steel wire, velcro and screws. Additional M10 thread on the bottom für fixing spigot or bolt.

Universal send/returnbox for audio or dmx, or combined 3/5-pin DMX breakout.

Pinout according to Standard AES72 / 3E.


Schematic CatCore SMD Audio over Cat DMX Splitbox

The following versions are available:

SMD-3M3F In/out Ethercon, 4x XLR 3-pin male, 4x XLR 3-pin female
SMD-3F5F In/out Ethercon, 4x XLR 3-pin female, 4x XLR 5-pin female
SMD-3M5M In/out Ethercon, 4x XLR 3-pin male, 4x XLR 5-pin male
SMD-5M5F In/out Ethercon, 4x XLR 5-pin male, 4x XLR 5-pin female

Application sample:

Twin row XLR/Cat adapter box, shown with mixed 3/5pin XLR for use as DMX-Multicore. Simple fixing at trusses with spigot and superclamp, securing with safety wire. XLR 3/5pin sockets are wired in parallel per channel making cable adapters obsolete. Various combinations allow bidirectional for audio over cat, allowing only one type of box for all audio purposes with wires.

Catcore XLR/Audio over RJ45/Cat5e box with mounting for Audio and dmx
