Input Patchbay 8-channel for ampracks with XLR, CatCore, Digital, Ethercon RJ45, e.g. for Powersoft X8 / outline XO8

Audio input panel 8-channel

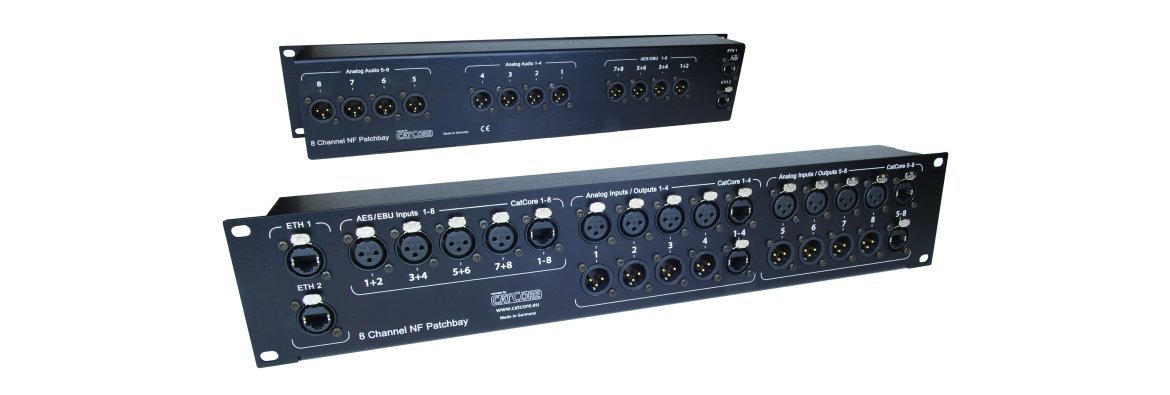

2HE Audio input patchbay for 8-channel amprack incl. 4x XLR in (AES/EBU), 8x XLR in/out (analogue audio), 2x Ethercon e.g. for Powersoft X8 / Outline XO8

Eight channel audio panel for amplifiers and ampracks. Analog and digital Audio inputs via XLR and CatCore, 2x Ethercon throughput. All analogue inputs with linked outputs on the front.

Low profile design, all connections on backside as sockets. Therefore usable witch any amp, and at any position within your rack.

Anodized aluminium housing 19" / 2RU.
Low depth allows even positioning behind devices within rack.

Laser engraving for permanent marking.

Pinout CatCore-ports according to standard AES72 / 3E.


Connections CatCore X8 NF Audio Panel Amps eight channel XLR Dante

The following versions are available:

X8-NF audio input panel 8-channel / 2 RU
X8 Audio Cableset 8-channel XLR and Speakon
X8 Cat Ethercon Patch PUR-Cable 1m

Optional acessories: Cable Set

Catcore Cable set for 8-channel Speakon / XLR Panel including XLR, Speakon and Ethercon

Speakon-, XLR- and Ethercon-set for 8-channel amp patchbays. Laser engraved housings, black Speakon plugs with permanent labelling under transparent ring.

Cross section speaker wires 4x4mm², all XLR-lines AES/EBU 110 Ohm. Optional ethercon patches with PUR jacket.
